Soffit Panels Baffles
Elevate commercial lobbies and residential profiles with premium Soffits, Aluminium Baffles, Acoustical Design Elements, and Reeded Fluted Panels engineered for a lifetime of structural elegance.
Continuous architectural lines that mock severe exterior decay.
Modern structures demand high material endurance. Sourcing organic redwood siding is expensive, highly hazardous, and demands exhausting structural sealing and restacking every three years.
Alumex bridges this tension. By baking high resolution raw powder-sublimated finishes into rigid structural aluminum cores, our profiles allow visual woodwork artistry while reinforcing mechanical building wind loads permanently.
Learn More About Our Quality Standards

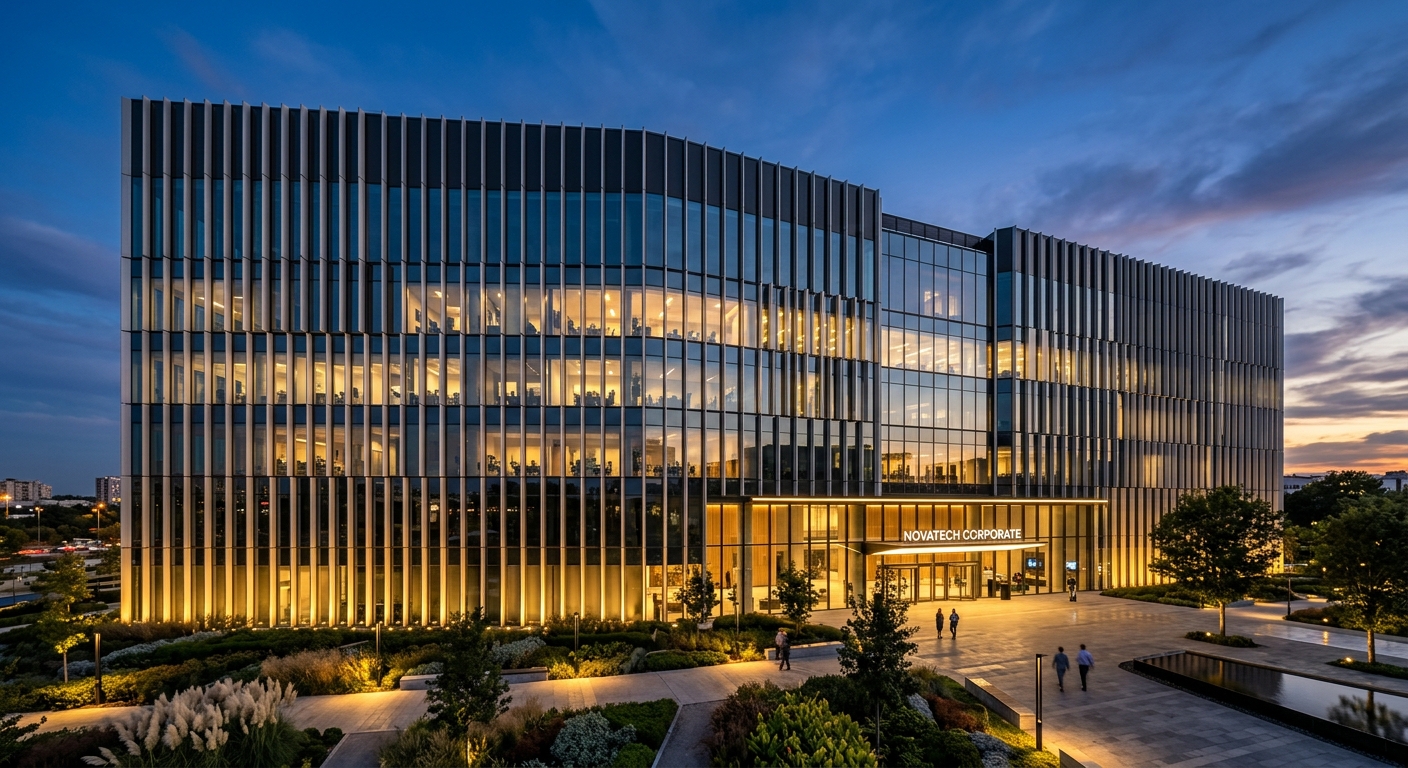

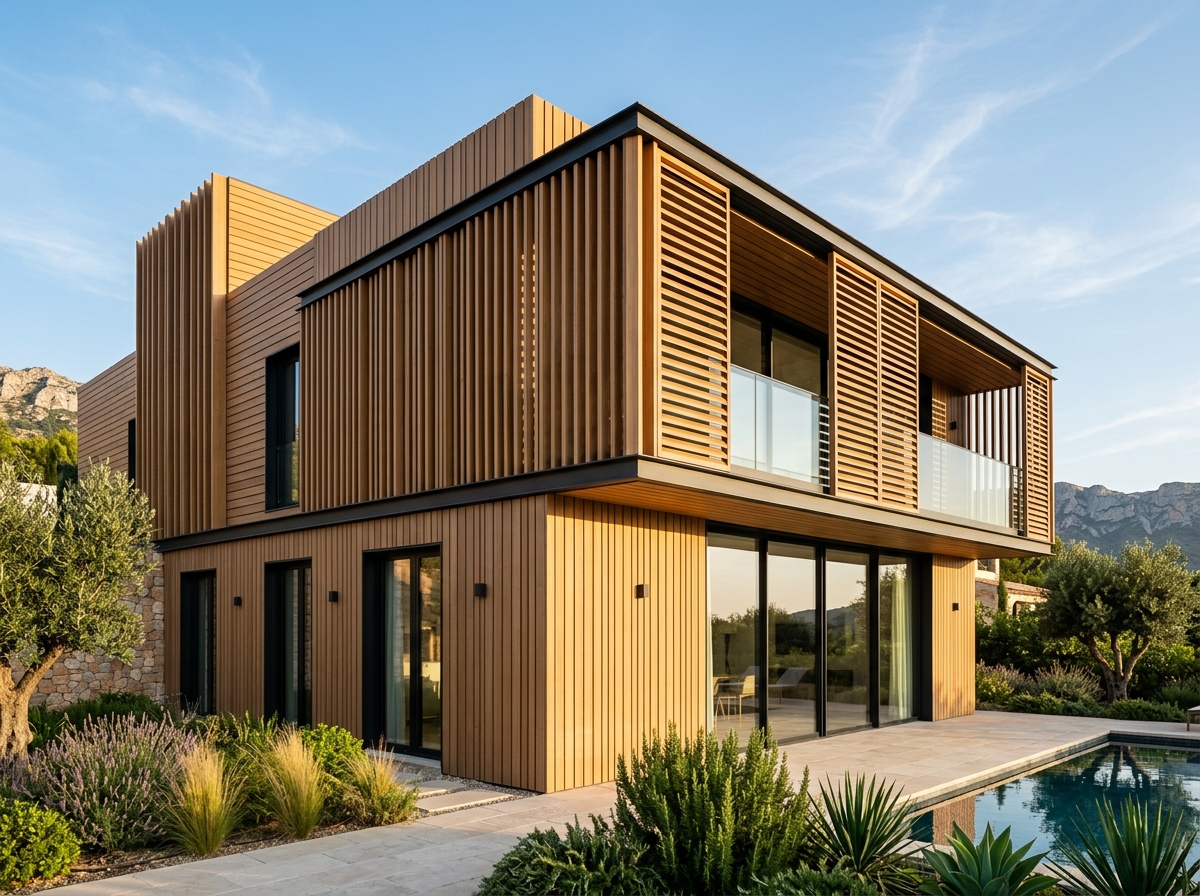

Facade Profile
Fluted Walls
Linear Ceilings
Acoustic Wave
Modular Profile Collections
Click any structural composite panel range to inspect interactive dimensions, installation details, specifications, and applications.
Exterior / Canopy
Soffit Panels
Continuous wooden aesthetics
High-integrity under-roof panels providing the exact continuous warm looks of timber without weather splitting or moisture logs.
Detailed Specs
Atrium / Open grid
Aluminium Baffles
Crisp vertical metal grids
Stunning linear metallic layout profiles designing grand perspective volume and providing rapid access to MEP arrays above.
Detailed Specs
Acoustical Felts
Design Baffles
Eco wave acoustic dampening
High absorption PET felt layouts modeled in flowing parametric wave vectors, restoring vocal speech clarity in modern glass offices.
Detailed Specs
Reeded Walls
Fluted Panels
Interlocking vertical slate
Majestic deep vertical convex flutes casting rich shadow textures, perfect for checking lobby columns and grand accent suites.
Detailed SpecsCombustibility Grade
Premium extruded alloy core carrying zero flame spread indexes.
Recyclability Commitment
Aluminum recycled structures using 95% less refining processing energy.
Extreme Wind Loads
ASTM tested clip anchoring matching seaside hurricane zones easily.
Acoustic NRC Gold
Bespoke felt designs cutting sound reflection indexes up to 85%.
Engineering Custom Cladding
Architects choose Alumex lists because we bridge exact timber visuals with modular aluminum click tracks. No face screws, no visible fasteners, and complete dimensional stability under the most intense monsoon weather cycles.
Ready to inspect physical material modules?
Submit your project layout dimensions. Our Cleveland HQ will dispatch customized material and color swatch samples straight to your drafting studio.
Retrieve Architect Swatch Box

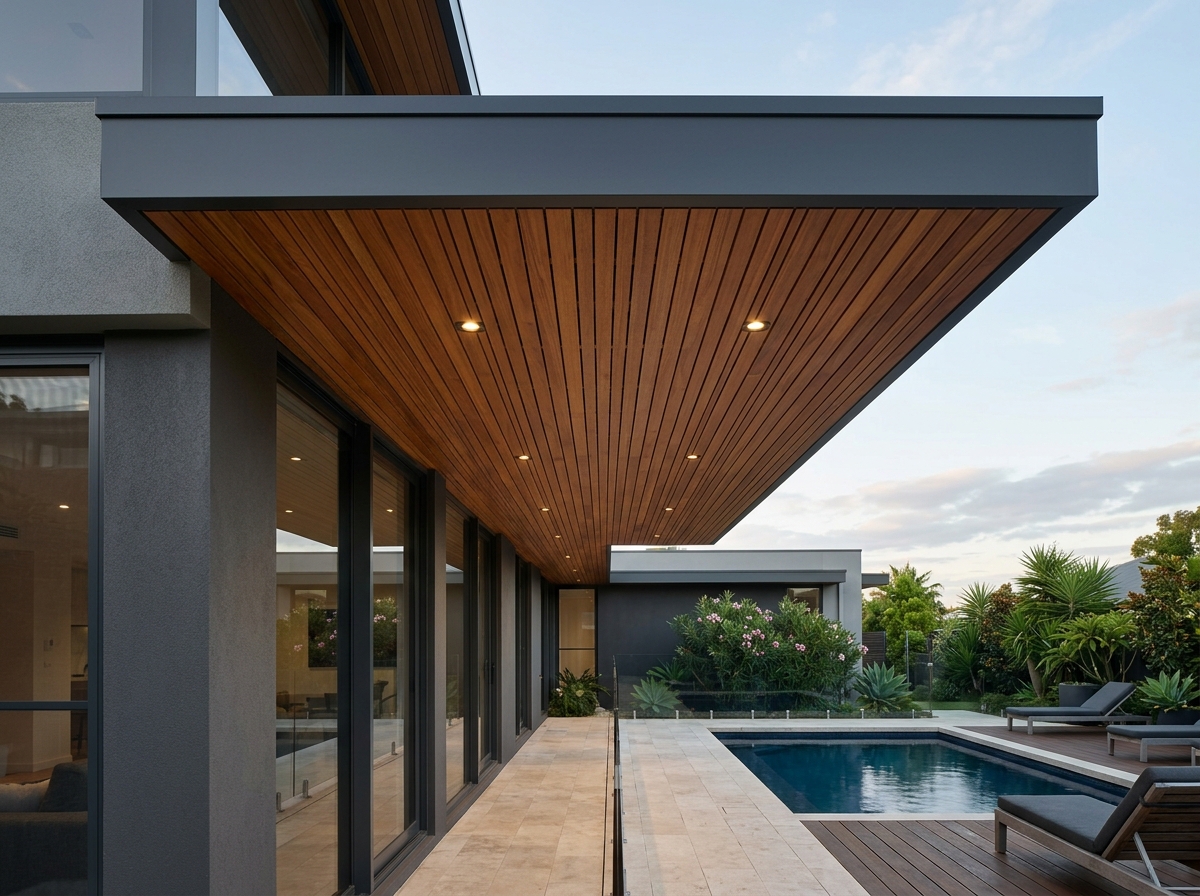

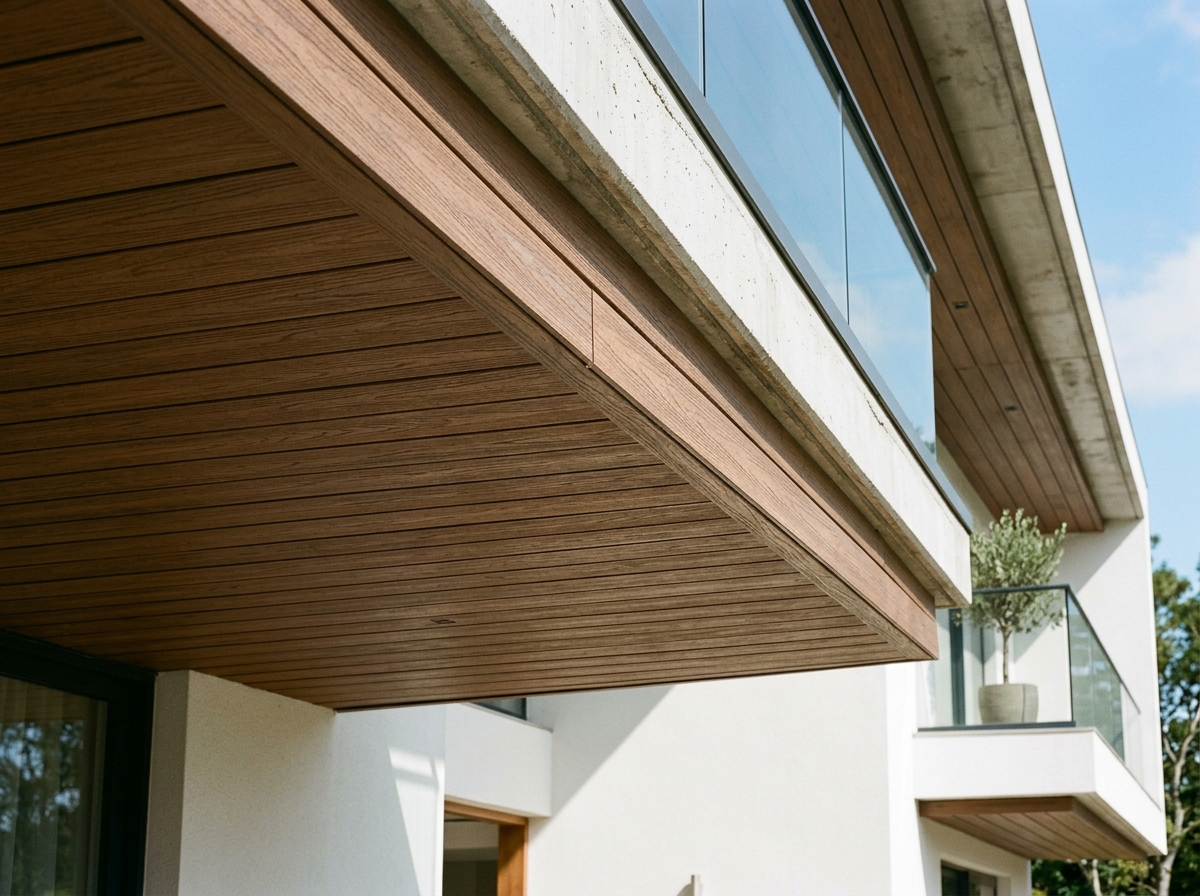

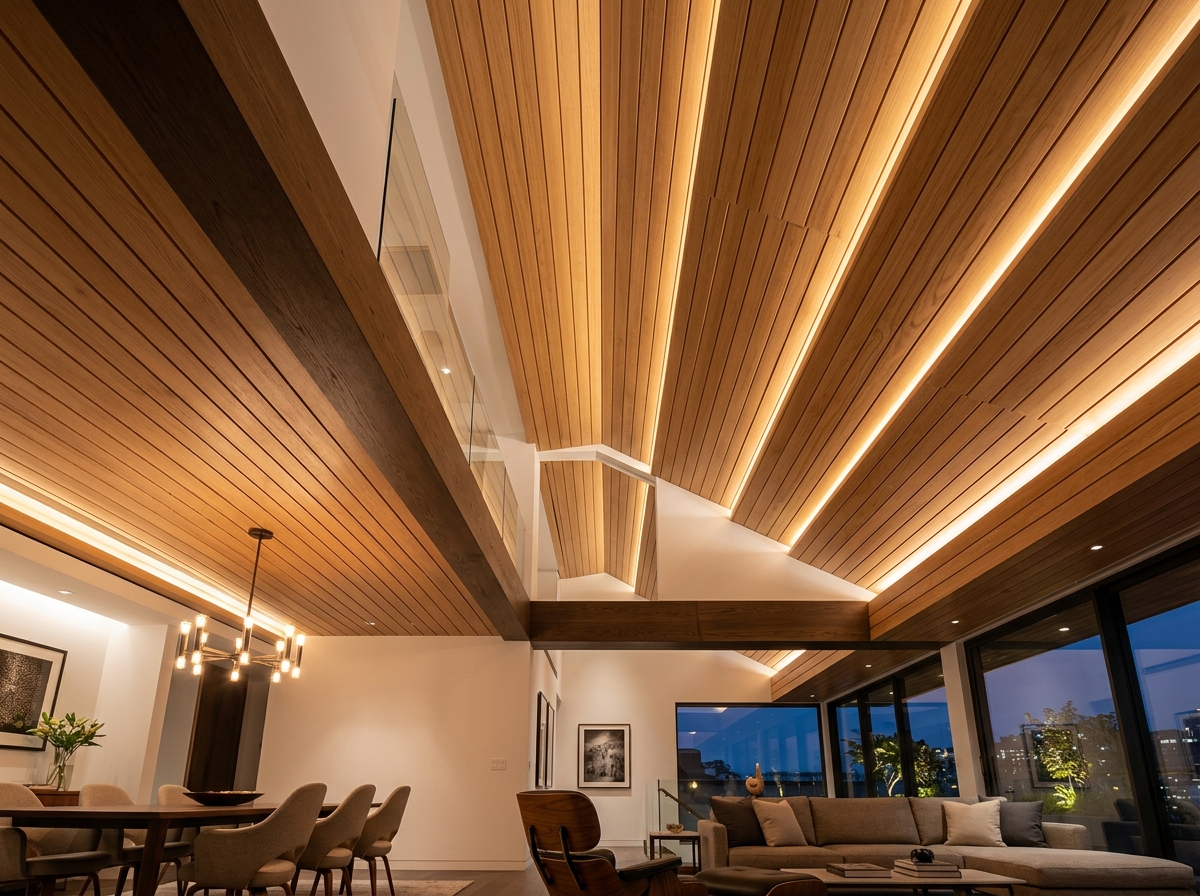

Architectural Soffit Panels
Premium interlocking protective ceiling boards providing warm natural timber layouts under cantilever roof eaves, canopy ceilings, and matching residential patios.
Wood Realism Without Splitting
Our architectural soffit siding is designed to completely stop weathering on exposed cantilevers. Free from peeling, rot, and termite bores, these rigid interlocks lock continuous warm shades under grand residential canopies and high commercial profiles.
Key Features
- Integrated Micro-Air Vents: Keeps damp air moving without visible holes.
- Fluorocarbon Coat: PVDF coating rejects fade under extreme shore salt.
- Tongue & Groove Grid: Snap lock eliminates nails entirely.
- LEED Sourcing: Reused aluminum core offering high sustainable values.
Why Architects Choose Alumex Soffits
Unlike traditional pine or cedar which buckles under humidity, these panels remain dimensionally stable. They expand and contract inside hidden joints without cracking the external veneer.
Standard Uses
Elite exterior villas overhang borders, resort dining pergolas, corporate entrances, airport skybridge panels, and wet moisture pools ceiling borders.
How to Install: Soffit Cladding Flow
SubFrame setup
Mount horizontal metal furring strips or matching wood backing spaced at max 400mm centers.
Perimeter track
Anchor matching corner J-channels or perimeter border trims straight along the building alignment.
Tongue Slot Lock
Slide individual panel tabs inside the J-channel, screw through pre-punched holes, and slot next tabs inside.
Border Trims
Slip matching closing caps or framing details over open ends for a seamless flush fascia transition.

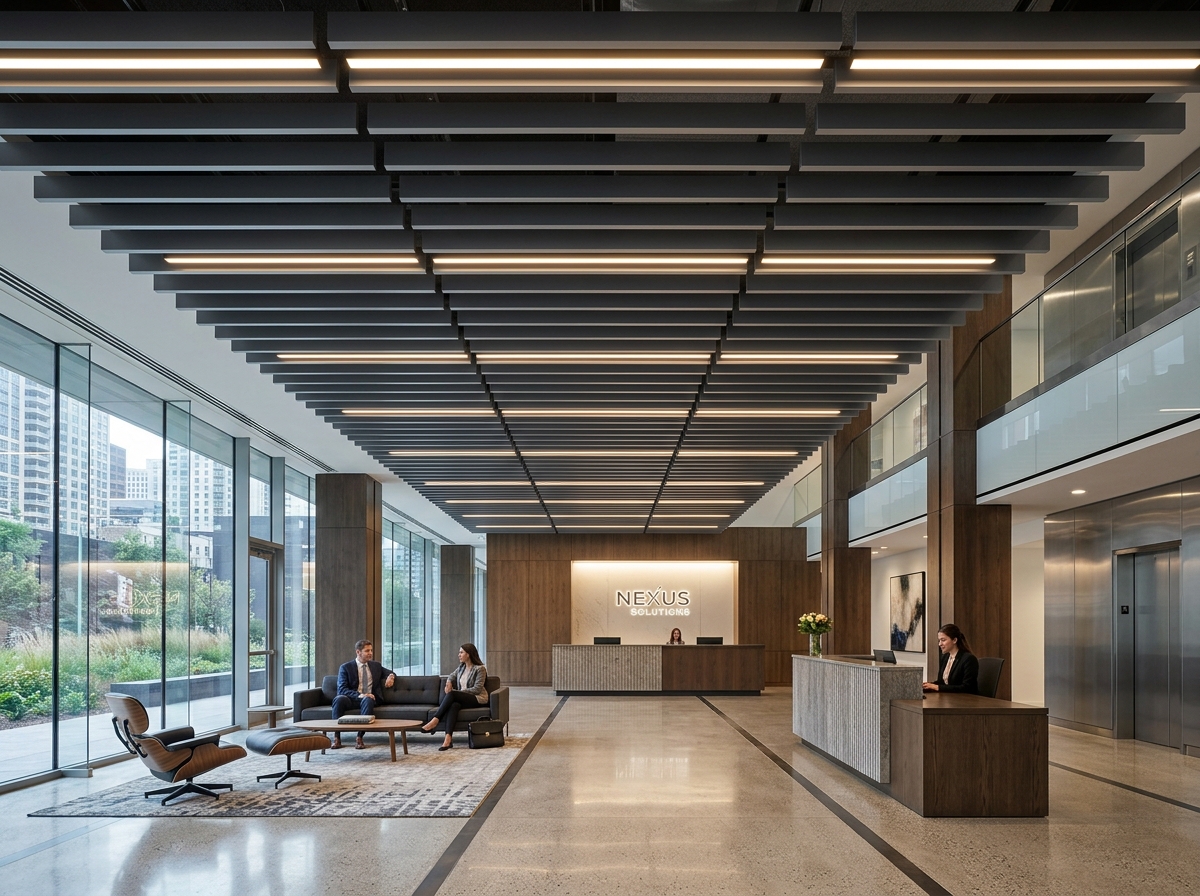

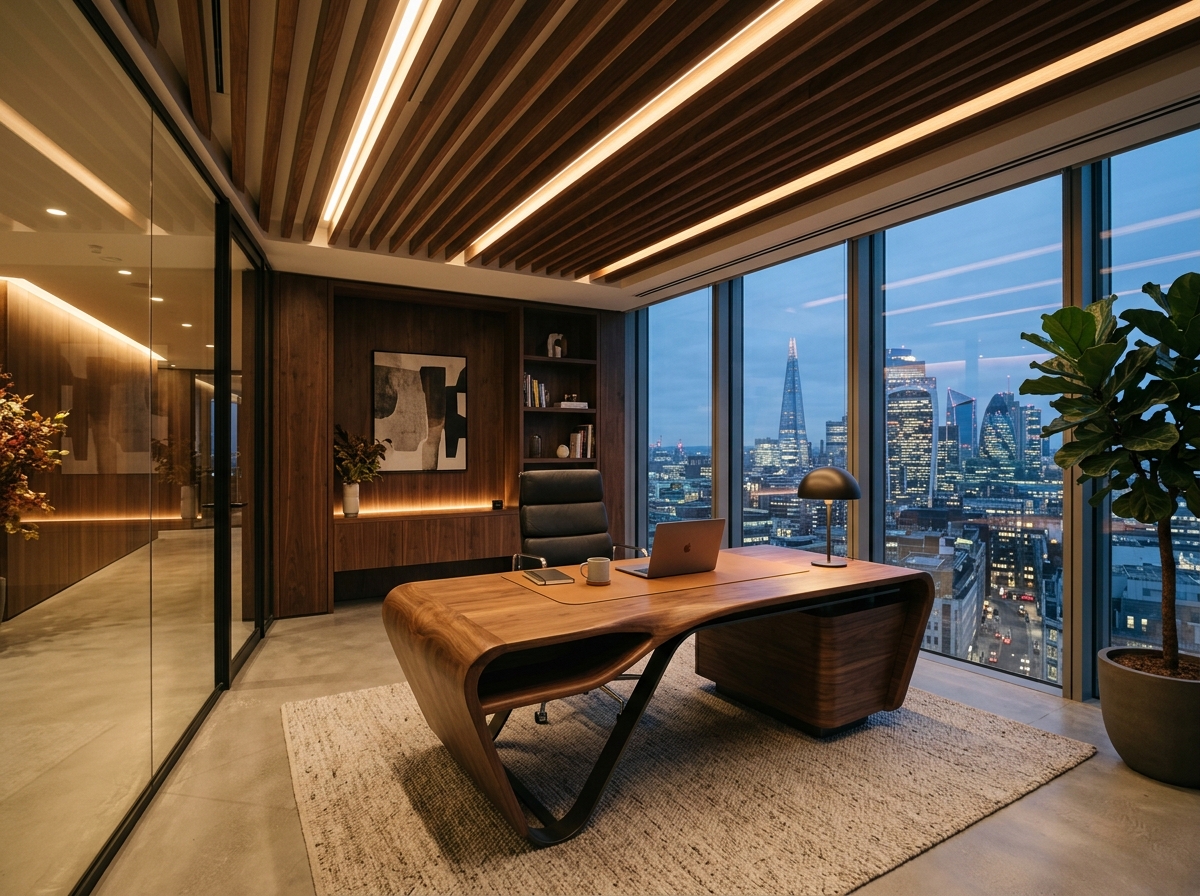

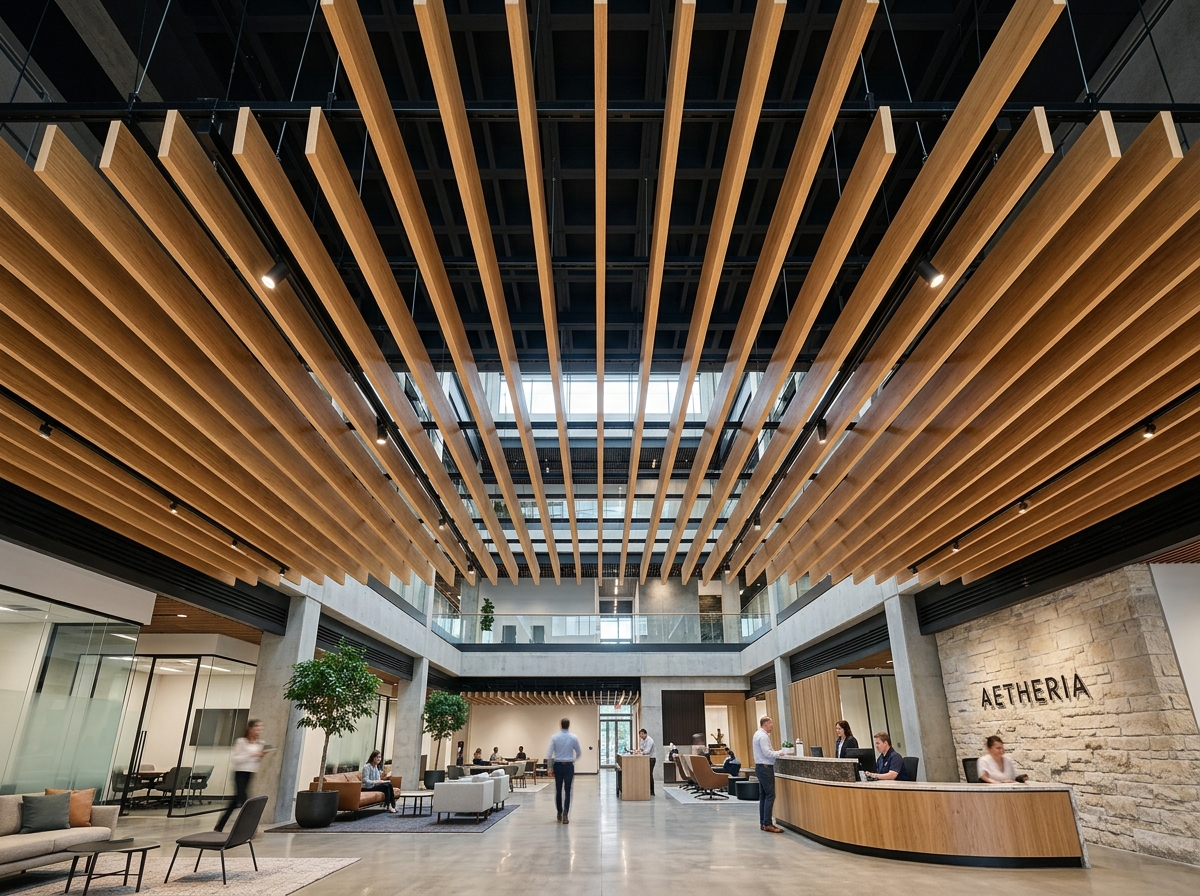

Linear Aluminium Baffles
Extruded ceiling blades suspended in parallel linear grids. Creates dynamic modern shadow patterns while letting air and security sprinklers pass cleanly above.
Modern Linear Ceiling Volume
Extruded vertical baffles provide crisp ceiling perspective shifts inside busy transit hubs and large public portals. Because the grid remains open-layered, architects can place air vents, electrical cable runs, and fire nozzles directly inside or above the subframe without creating cluttered visual panels.
Key Features
- Overhead accessibility: Quick slide channels allow easy hand access.
- Adjustable Spacing: Design visual density by choosing narrow or wide carrier notches.
- No Sagging or Dropping: Rigid extruded alloy walls ensure perfectly flat straight runs.
- Integrated LED Rails: Accepts line light bars directly inside channels.
Why Architects Specify Alumex Baffles
Traditional timber hanging gills are incredibly heavy and require constant restaining. Our lightweight structural aluminum cuts roof weight loads up to 60%, speeding up delivery timelines.
Standard Uses
International airport terminals, metro railways corridors, shopping complex corridors, hotel lobbies, corporate lobbies, and technical universities.
How to Install: Metal hanging Baffle Systems
Hanger Rod Anchor
Establish grid suspension markings and anchor metric threaded support wires straight into structural overhead steel/concrete.
Carrier Rails Lock
Bolt premium notched galvanized black sub-carrier tracks across suspended wires, leveling carefully with laser guides.
Baffle Snap Click
Lift the U-shaped aluminum baffles straight up, clicking outer profile notches over specialized carrier grip tabs.
Profiles Splices
Use continuous hollow inside connectors to align joint segments and snap color-coordinated closure end-caps over hollow tips.

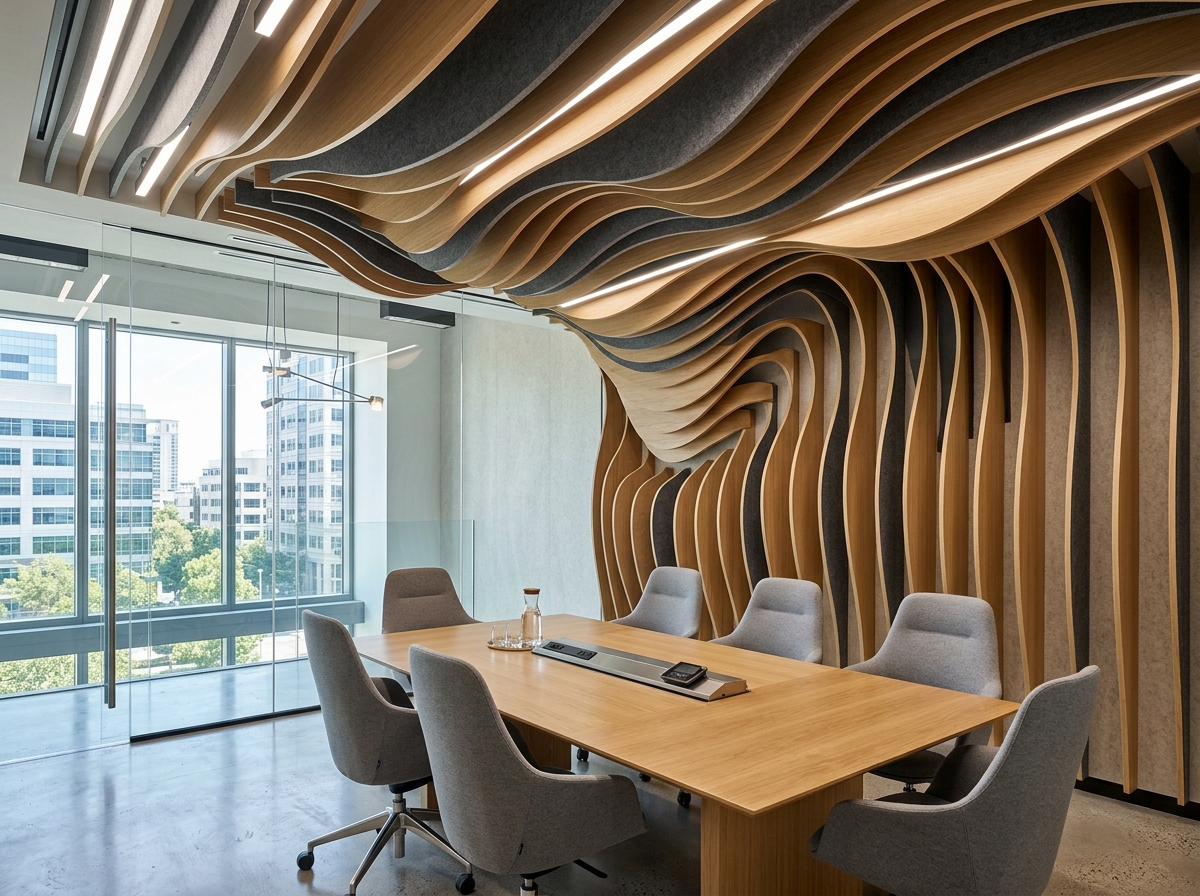

Architectural Design Baffles
Eco-acoustic felt baffles optimized for modern spaces. Engineered with flowing wave shapes to absorb speech echoes and reduce interior decibels beautifully.
High Aesthetic Sound Attenuation
Glass walls and exposed concrete look ultra-modern, but bounce sound terribly. Our architectural acoustic hanging felt elements capture and dissolve floating sound waves completely. This keeps conversations quiet and private inside open offices or high public spaces.
Key Features
- NRC 0.85+ Acoustic Core: Suppresses severe echoes and vocal flutter noise.
- Parametric Waves shapes: Sculpted layouts change flat ceilings into artwork surfaces.
- Recycled Sourcing: Consists of 60% recycled PET plastic soda bottles.
- Ultra Light dead-load: Easily mounts over standard drywall panels safely.
Why Architects Specify Alumex Felt
We use hypoallergenic, zero formaldehyde post-consumer cores. They are completely odorless and do not trap moisture, keeping indoor air pristine.
Standard Uses
Modern open office layouts, hotel registration desks, conference room ceilings, sound studios, and high university library galleries.
How to Install: Acoustic Hanging Baffle Systems
Level Layout markup
Define accurate layout centers along the ceiling slab using a crosshead laser level alignment tool.
Wires anchor
Screw wire anchor terminals into the drywall. Run high-tensile stainless wire ropes from clips below.
Felt sliders track
Insert the pre-slotted PET acoustic felt boards directly into our horizontal channel sliders.
Plumb adjusting
Click self-locking gripper clips up or down along the wire rope to level wave flows perfectly.

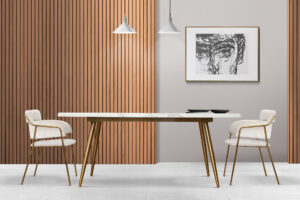

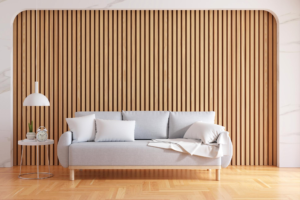

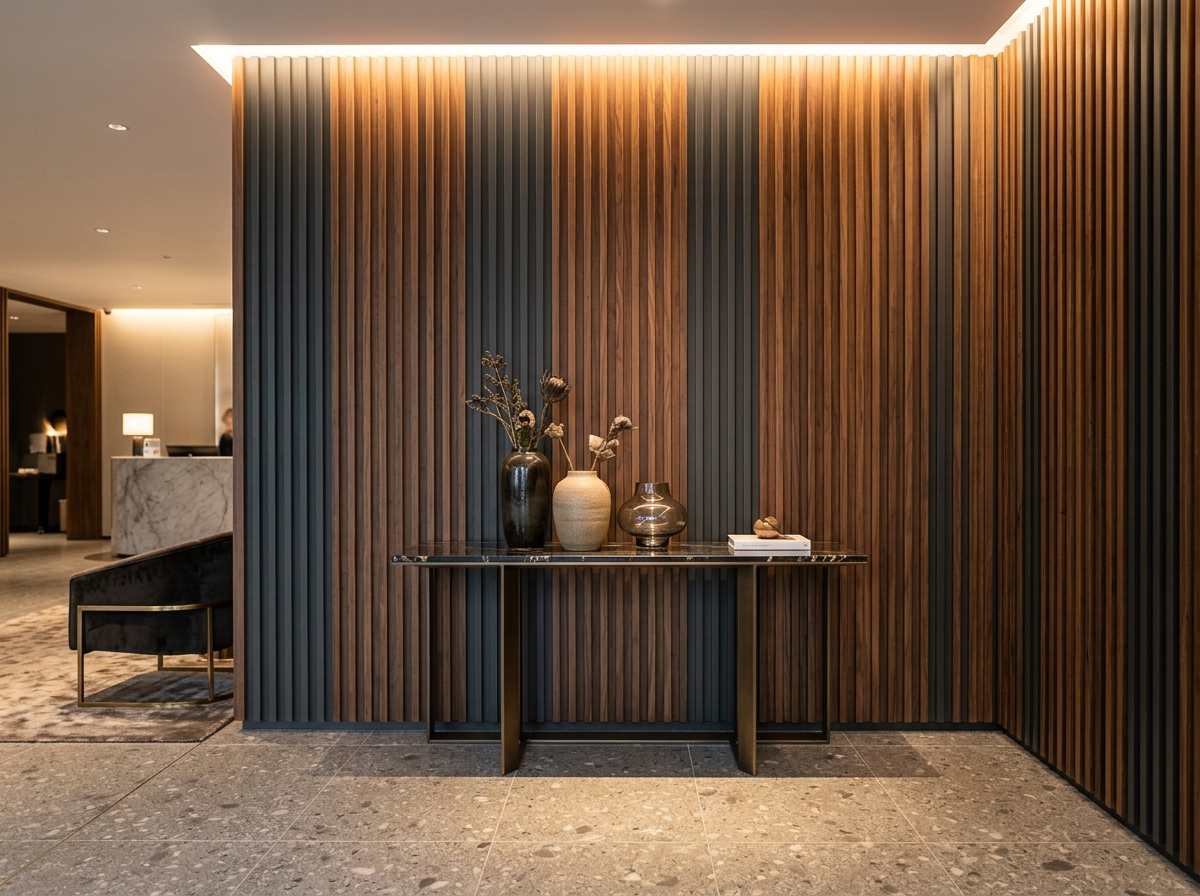

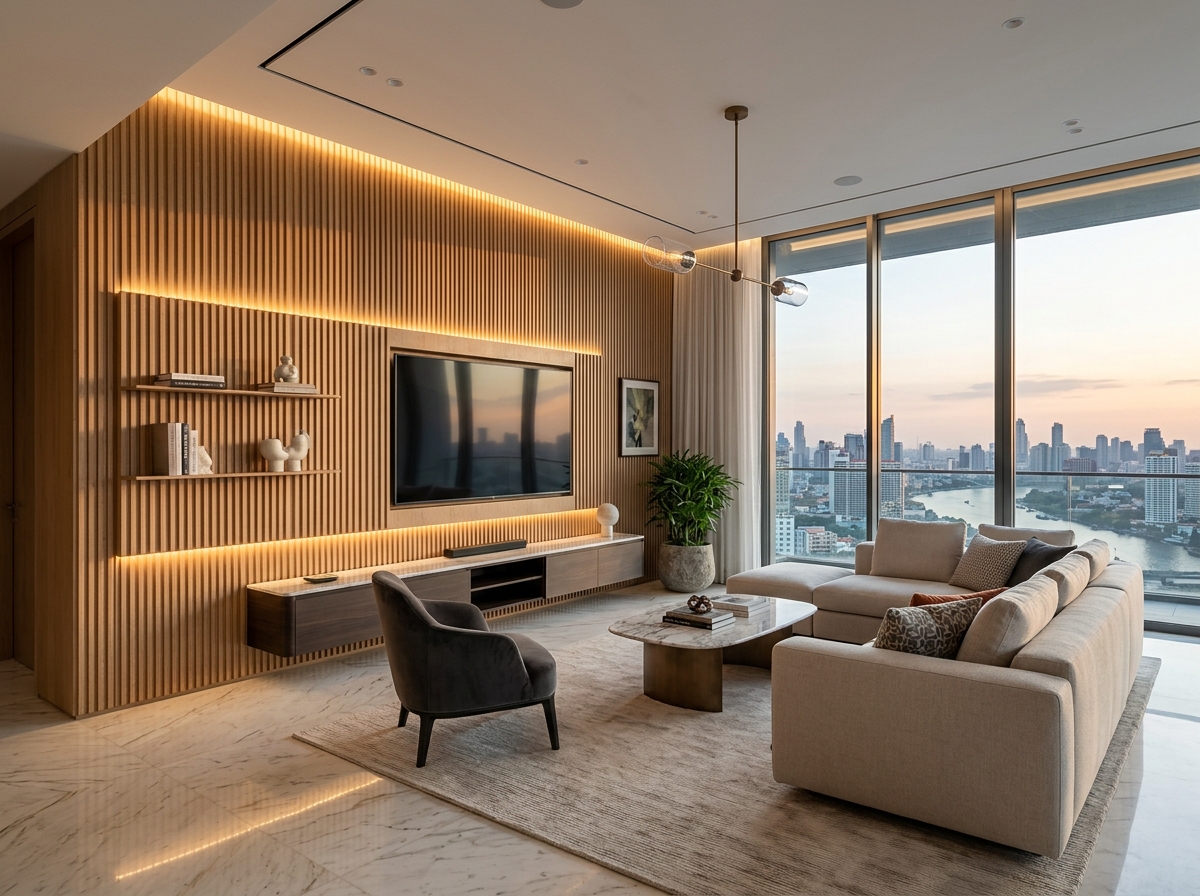

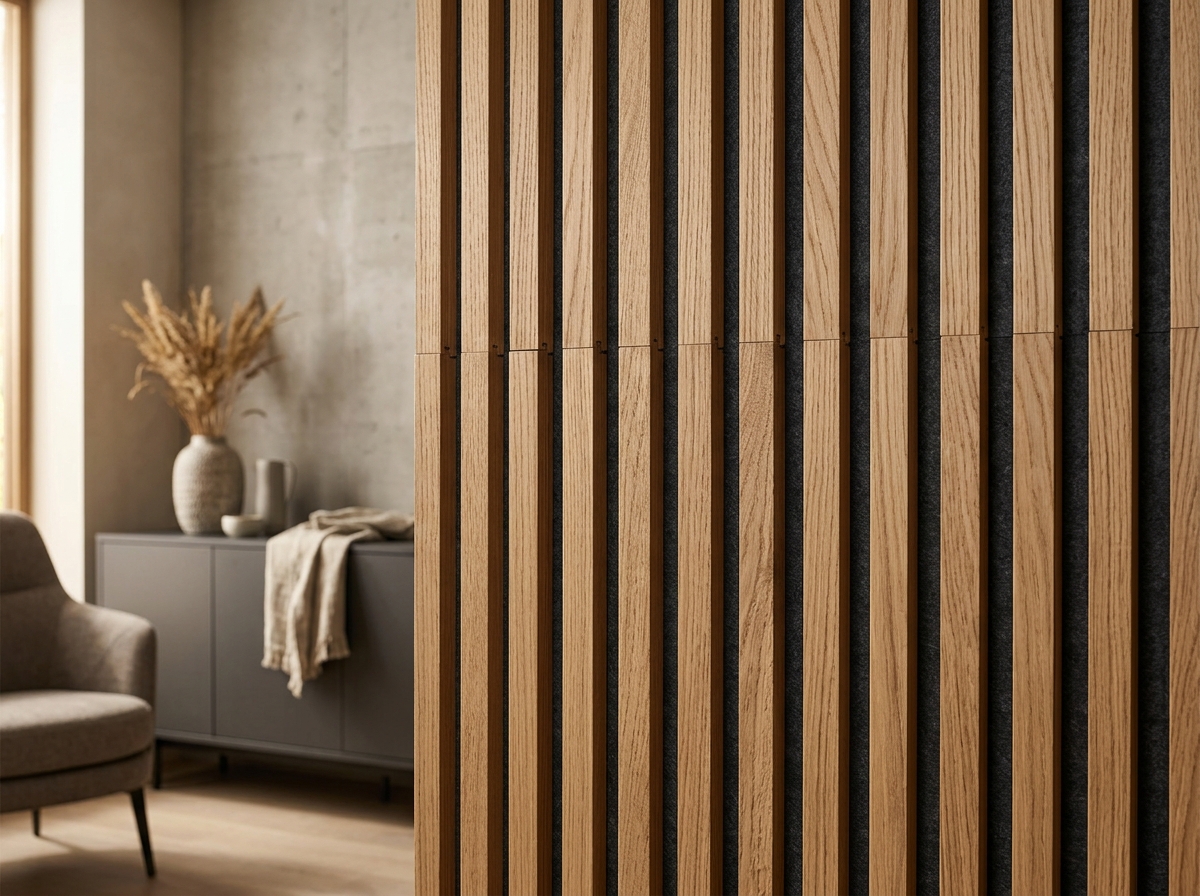

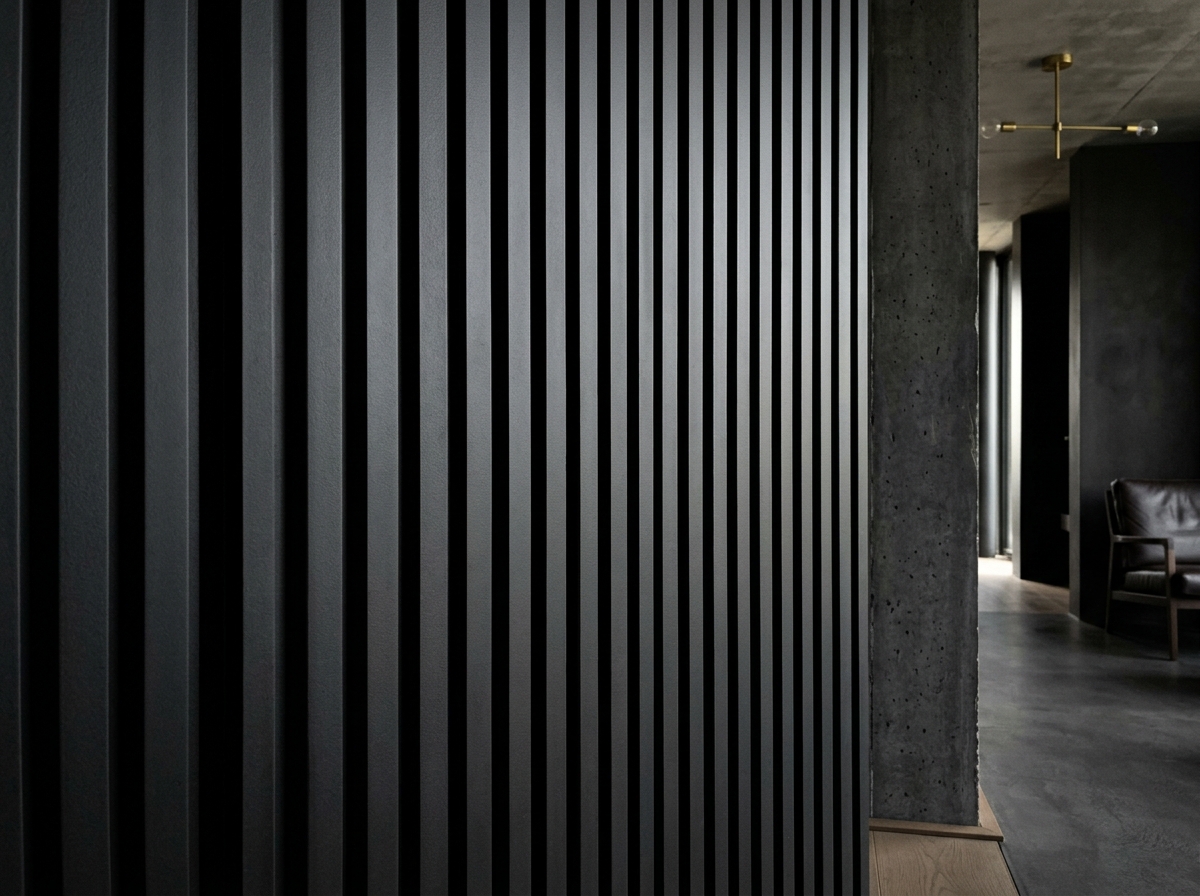

Architectural Fluted Panels
Reeded wood-plastic composite panels featuring deep vertical flutes. Creates beautiful light-and-shadow lines across interior focus walls and building columns.
Rich Light & Shadow Textures
Flat painted drywall feels sterile. Our continuous fluted panels bring depth to plain walls. They create deep shadow lines when accent lighting shines from the top, adding a cozy feel to hotel check-in desks and grand corporate backdrop boards.
Key Features
- Distinctive 3D Lines: Clean vertical ridges that create beautiful, repeating shadows.
- Waterproof Composite: 100% moisture-resistant, perfect for hotel restrooms.
- Completely Pre-finished: Requires no messy sanding, priming, or sealing.
- Eco Carbon-Neutral Core: Made with bamboo fibers and recycled materials.
Why Architects Choose Alumex Fluted
The tongue-and-lap joint hides mini pin-nails, fasteners, and glue, creating a continuous reeded texture with no visible lines.
Standard Uses
Hotel lobbies, media-wall panels behind TV screens, executive boardrooms, escalators, and decorative elevator columns.
Fluted Panel Multi-Layer Detail
An outer polymer coat that guards against scratches, direct impact, and fading finishes.
Carbon-neutral bamboo fibers fused with co-polymers under extreme pressure.
Tongue-and-groove joint system that conceals nails and glue lines entirely.
How to Install: Fluted Slat Cladding Systems
Substrate check
Make sure the plasterboard or plywood wall backing is clean, flat, and completely dry.
Adhesive Application
Apply vertical lines of high-grab polyurethane glue across the back of the fluted sheet.
First Panel Placement
Press the first slide sheet flat on the corner and shoot mini brad nails through the tongue to lock it.
Groove Interlock
Slide the next sheet's groove over the nailed tongue. Perfect tabs align, hiding screws completely.
Why Premium Engineering?
Elite buildings require premium materials. We manufacture our profiles to meet the toughest fire-safety codes, wind-loads, and acoustic attenuation values.
100% Closed Loop Recycled Aluminum
Aluminum is exceptionally eco-friendly. It is infinitely recyclable; re-melting existing profiles consumes 95% less energy than raw mining.
All off-cuts on our factory floor are gathered, cataloged, and shipped back to the casting furnace for clean re-extrusion. When a building's lifespan ends decades from now, Alumex parts can be completely recycled for future architecture, supporting circular carbon neutrality.
Authorized Test Reports
We periodically test our profiles at globally recognized visual labs to ensure premium structural safety.
Class A1 Fire Code
Absolute protection inside public spaces. Fully non-combustible with zero smoke or melting emissions under flame tests.
Hurricane resistance
Certified to withstand severe offshore wind pressure on high-altitude towers and exposed residential canopies.
Acoustic NRC Gold
Sound absorption rating reaching NRC 0.85 when backed with Alumex high-density recycled felt modules.
LEED Sourcing Gold
Consists of over 60% pre-consumer recycled content, contributing directly to LEED rating points.
Architect Spacing & Quotation Office
Request physical panel swatches, download BIM/CAD drawing profiles, or perform linear ceiling spacing estimations in real-time below.
Linear Spacing Estimator
Adjust dimensions and center pitch values to estimate profile quantity, total running meters, and total panel weights for layout plans.
